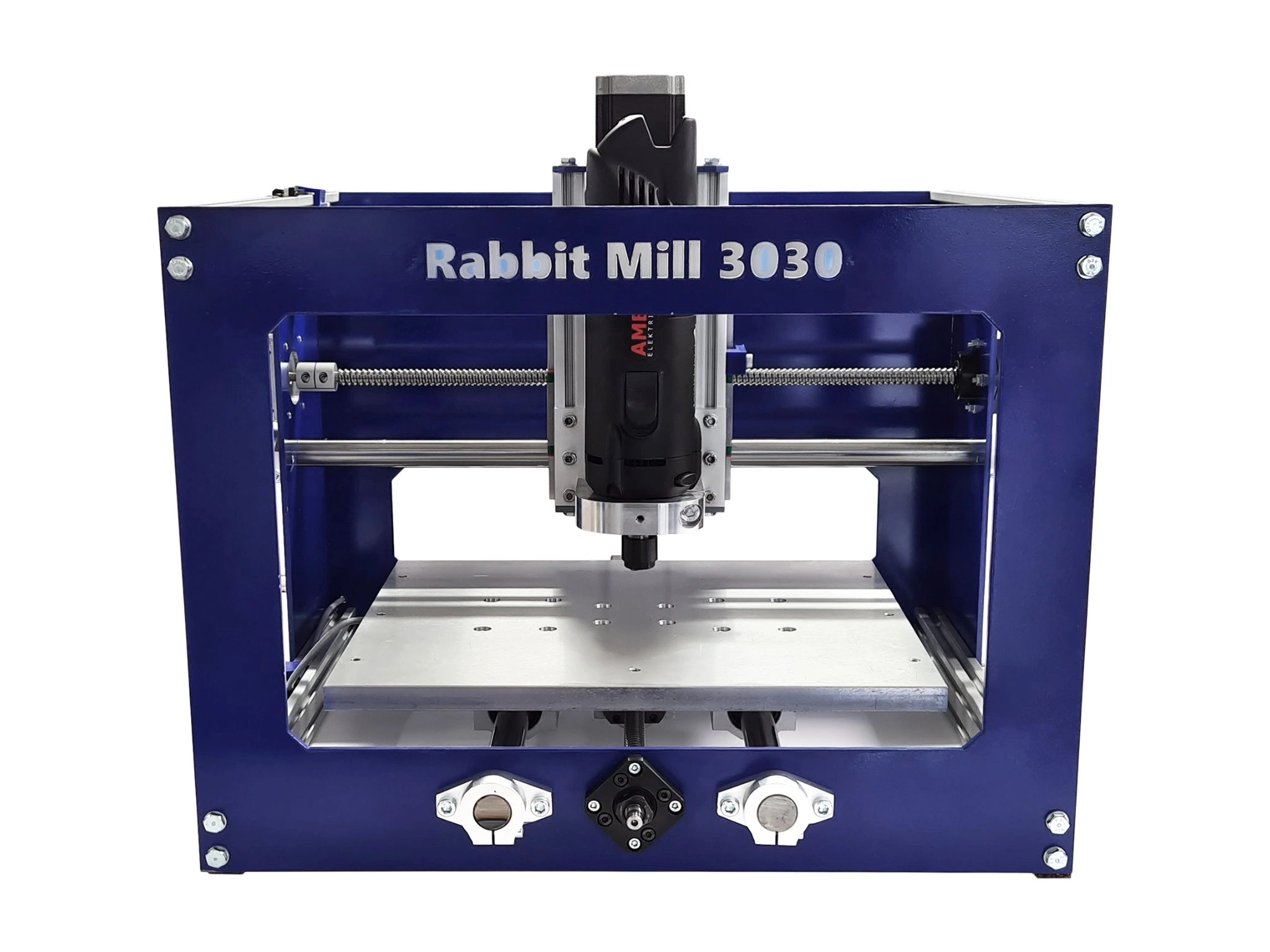

Rabbit Mill 3030

Plug & Play desktop CNC Router that's perfect for designers, makers, engineers, architects and anyone looking for an easy-to-use CNC.

Customize your Rabbit Mill 3030

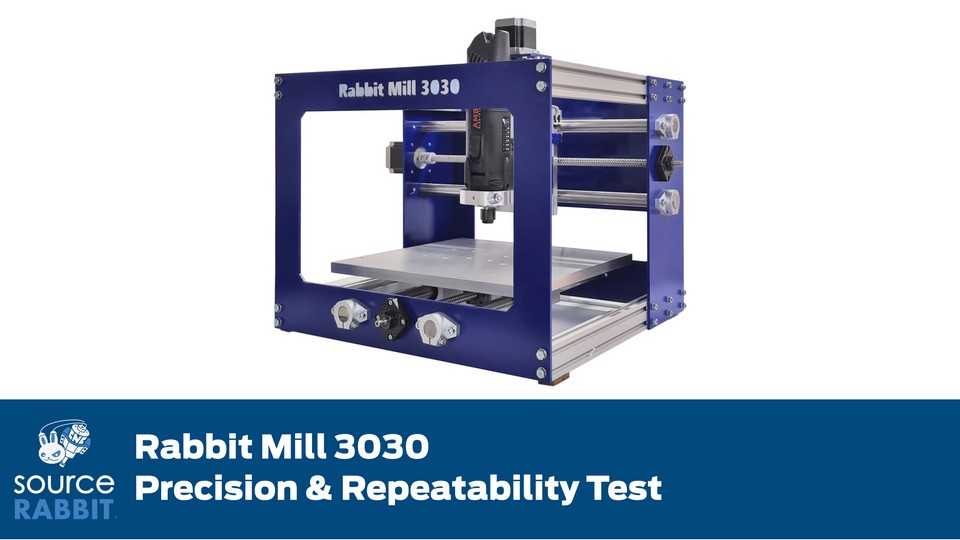

- PHOTOS & VIDEOS -

- SPECIFICATIONS -

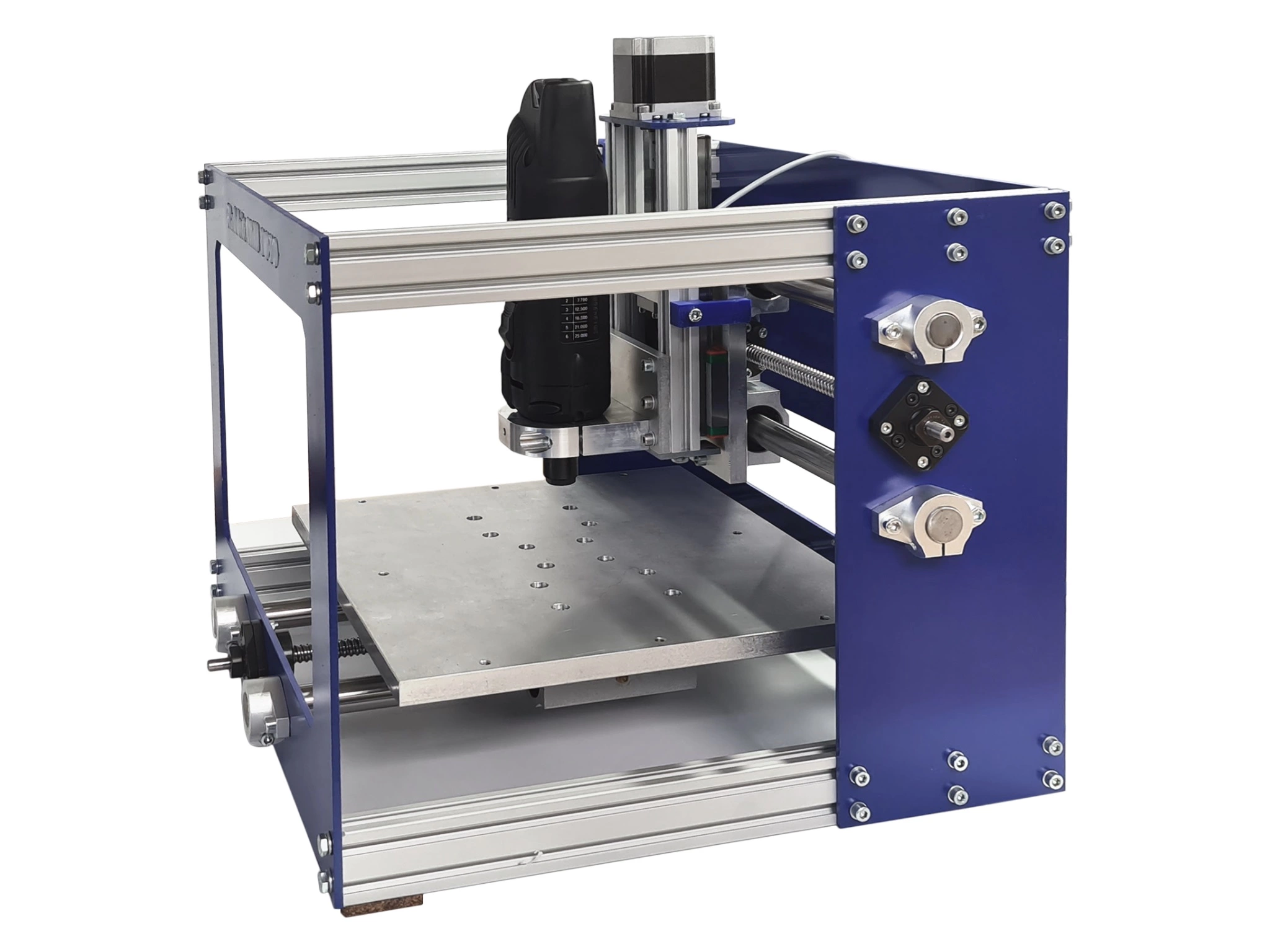

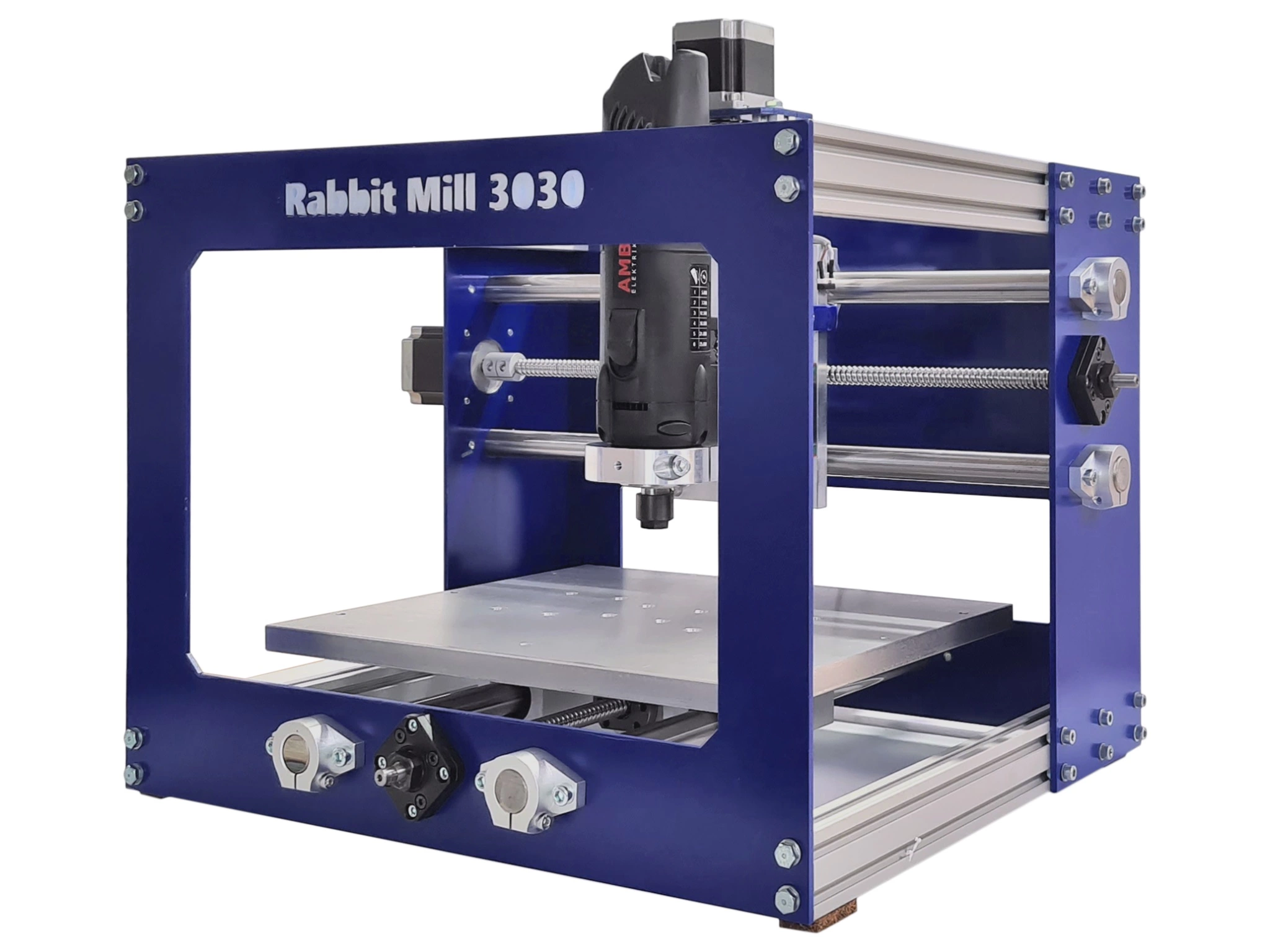

Rabbit Mill 3030, the only thing you need on your workbench!

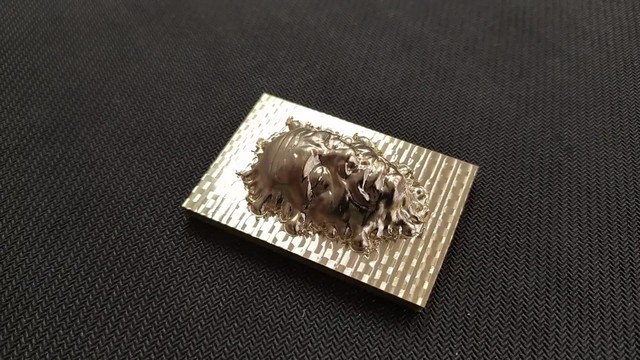

Equipped with a 1050 Watt spindle and zero backlash ballscrews, the Rabbit Mill 3030 can make parts with precision out of aluminum, brass, copper, wood and plastics.

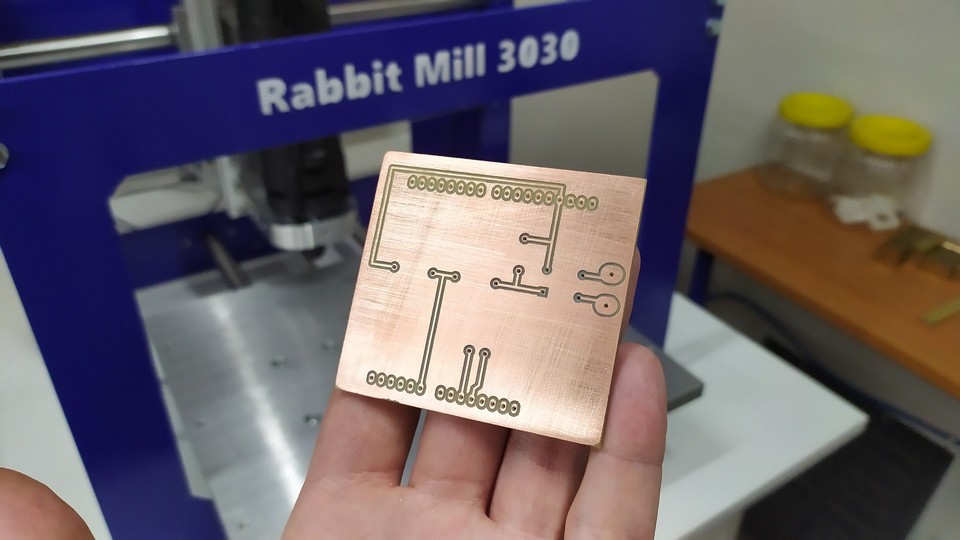

Designed to take little space on your desk and with a cutting area of 300x300x60mm it is ideal for a variety of applications such as jewelry making, PCB boards, R/C parts, small mechanical components and anything else you can think of !

All axes of the Rabbit Mill 3030 are assembled from precision hardened steel shafts with a diameter of Φ20mm, while the square linear rails of the Z axis give extra strength and precision while milling hard materials. Its terminal switches are connected to an optocoupler circuit that isolates any external electromagnetic interference and guarantees accuracy on the homing process.



CUTTING AREA

STEPPER MOTORS

FEEDRATE

  • 300 x 300 x 60 mm
  • 3 x Nema 23 with
    1.16Nm (164.3oz.in) torque
  • Max. Feedrate: 2000mm/min


FRAME

CONTROLLER

SPINDLE

  • Material: ST37-2 Steel
  • 3 Axis GRBL controller
    with USB Connection
  • 1050 Watt
  • 25.000RPM


POWER SUPPLY

PACKAGE CONTENTS

NET WEIGHT

  • Input: 240Volts
  • Power: 250Watt
  • Rabbit Mill 3030
  • USB Controller
  • USB Cable
  • User Manual
  • Kg: 31
  • Pounds: 68



Rabbit Mill 3030 ships
fully assembled!

No Manual to read

Forget about reading manuals and spending hours to fit every cable and screw.

No cables

Just plug into the power line, connect the USB port and you could be carving your first designs minutes after you receive your Rabbit Mill 3030.


- HOT FEATURES -

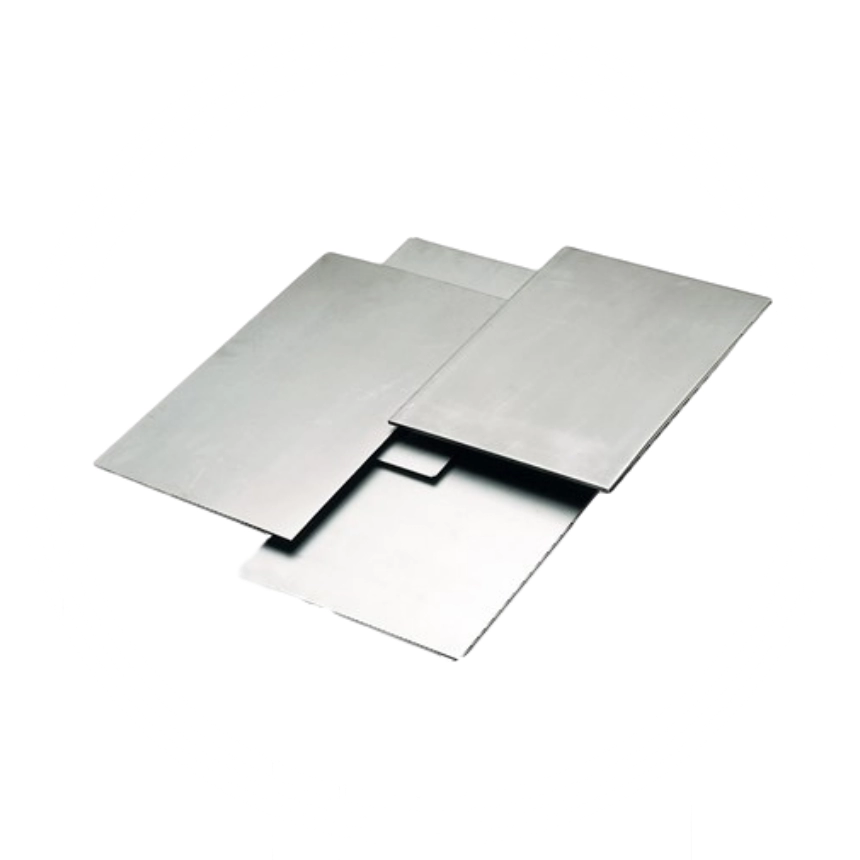

Full Steel Frame

Full Steel Frame

Unlike competition, Rabbit Mill skeleton is made from St37-2 steel.

The reason we decided to make a desktop CNC machine entirely from steel is to ensure that it will maintain its precision in long term operation.

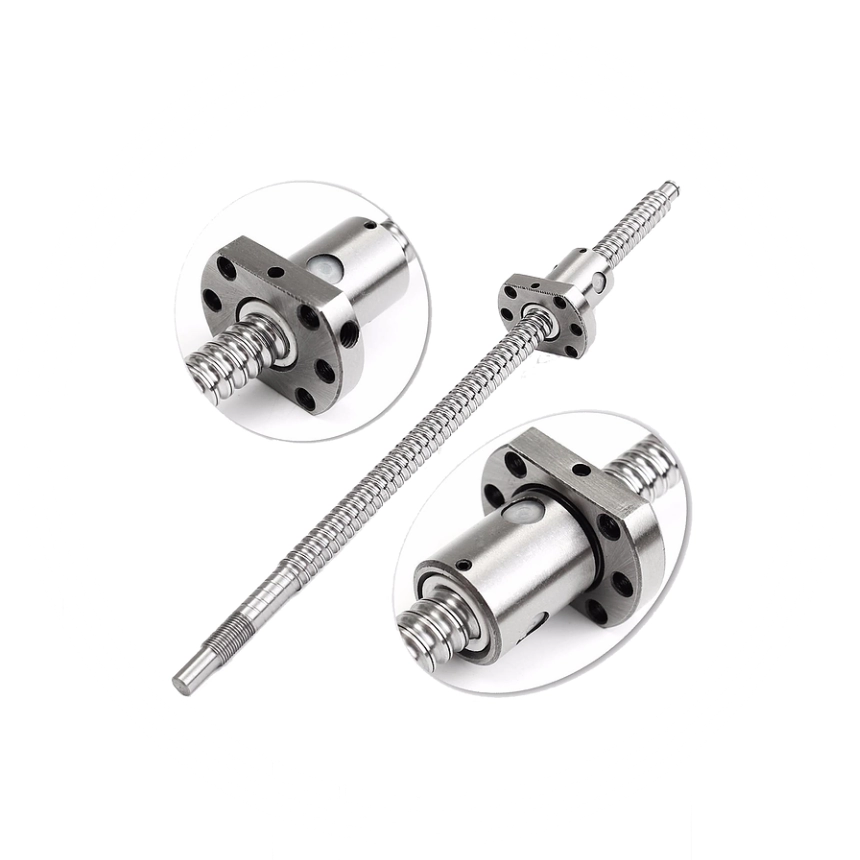

Ballscrews

Ballscrews

Compared to other micro cnc routers on the market, Rabbit Mill 3030 is equipped with high quality ballscrews.

Ballscrews offer a high level of mechanical efficiency while they eliminate backlash.

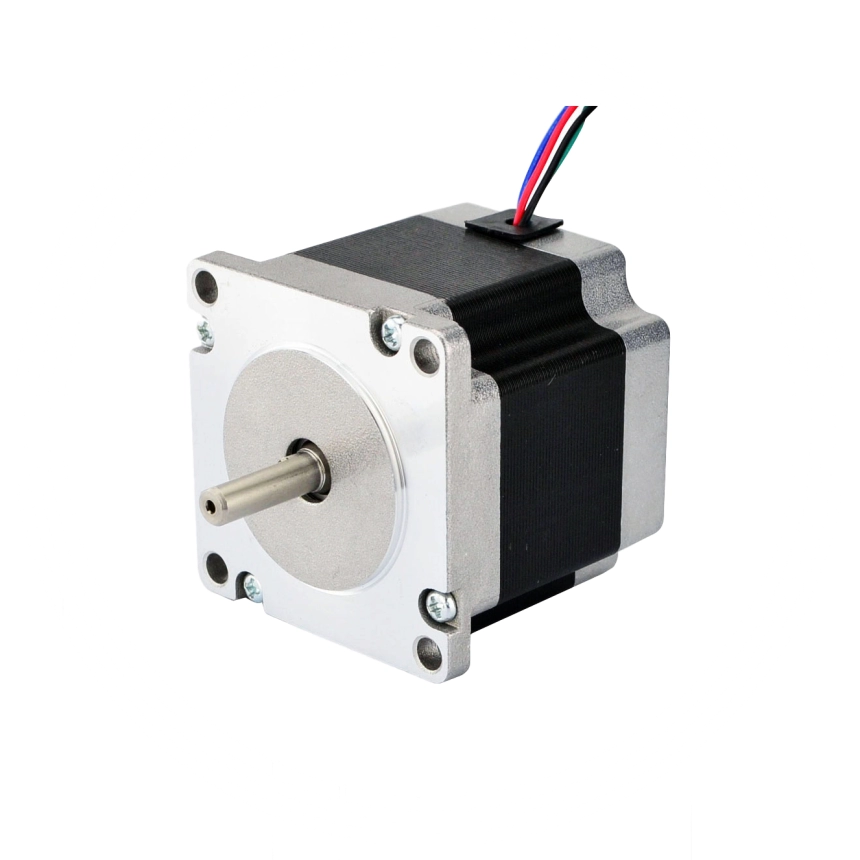

Steppers

Steppers

We chose low inductance Nema 23 stepper motors with a holding toque of 1.16Nm (164.3oz.in) and 200 steps per revolution for Rabbit Mill 3030.

These motors, combined with the zero backlash ballscrews, are capable to provide the required torque in order to mill wood, plastics and non ferous metals such as aluminum with a resolution of 0.0025mm.

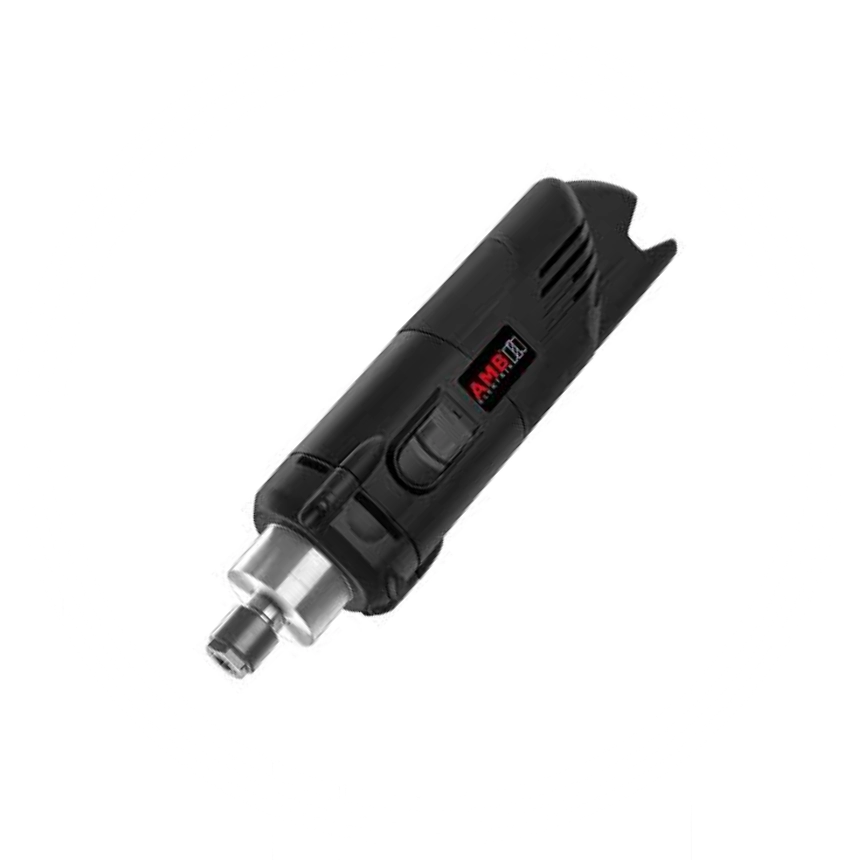

High Speed Spindle

High Speed Spindle

Rabbit Mill 3030 is equipped with 1050Watt AMB Spindle.

The AMB spindle comes ready with a factory test certificate of runout which guarantees the runout to be <0.15mm at a distance of 25mm from the tip of the Spindle.

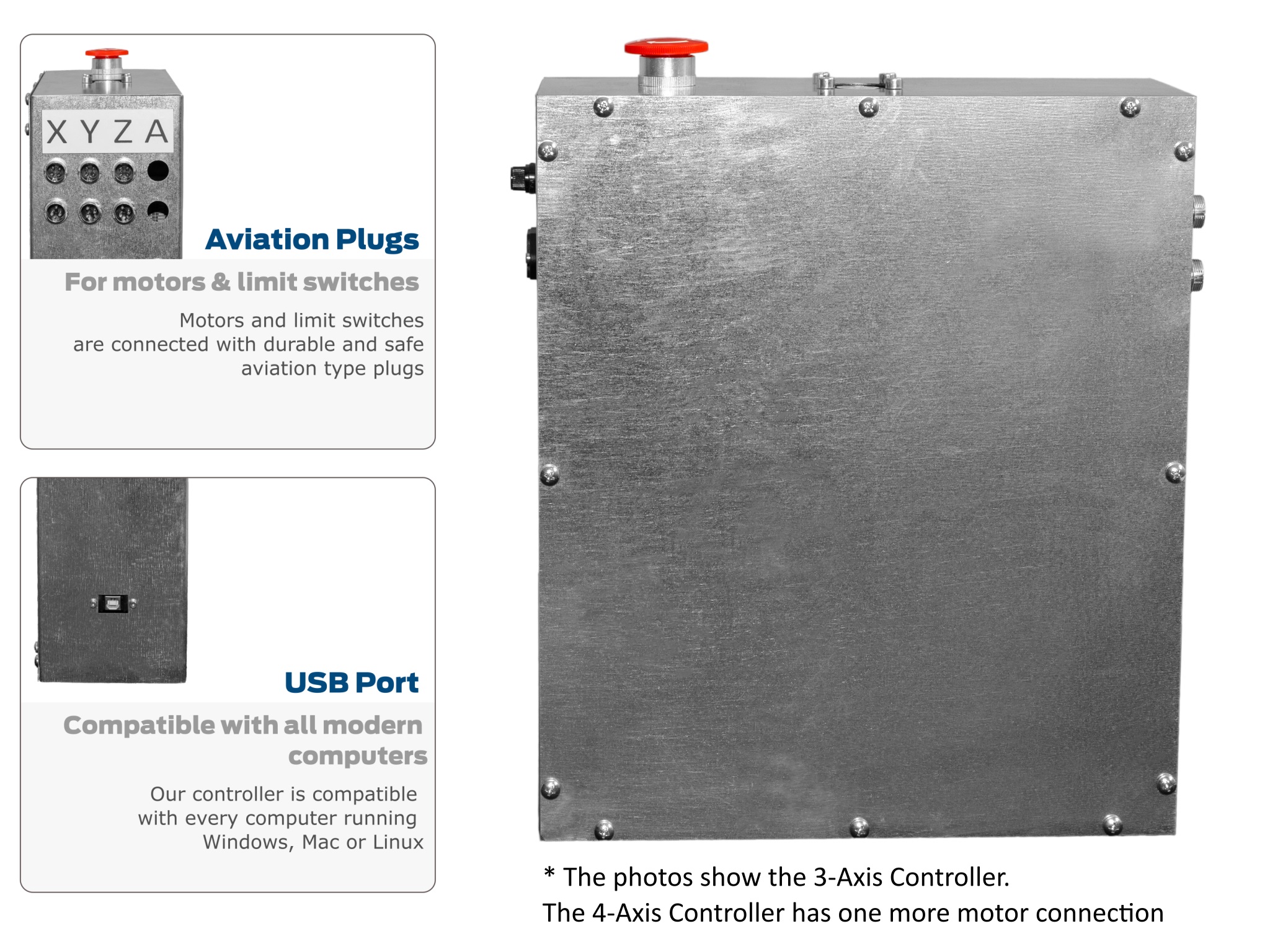

GRBL Controller

GRBL Controller

Rabbit Mill 3030 comes with an Arduino UNO and a GRBL Shield with DRV8825 Stepper Drivers as a controller.

The main reasons we chose Arduino UNO and the GRBL software are their ease of use, stellar performance and of course cost effectiveness.

Open Source Software

Open Source Software

You can control your Rabbit Mill 3030 using the SourceRabbit GCode Sender.

SourceRabbit GCode Sender is open source and FREE and you can download it from our Downloads page.

CAM Software

CAM Software

You can get your Rabbit Mill with a license for the latest ESTLCam software.

ESTLCam is a complete CAM(Computer-Aided Manufacturing) software solution for 3 Axis CNC production machining.
