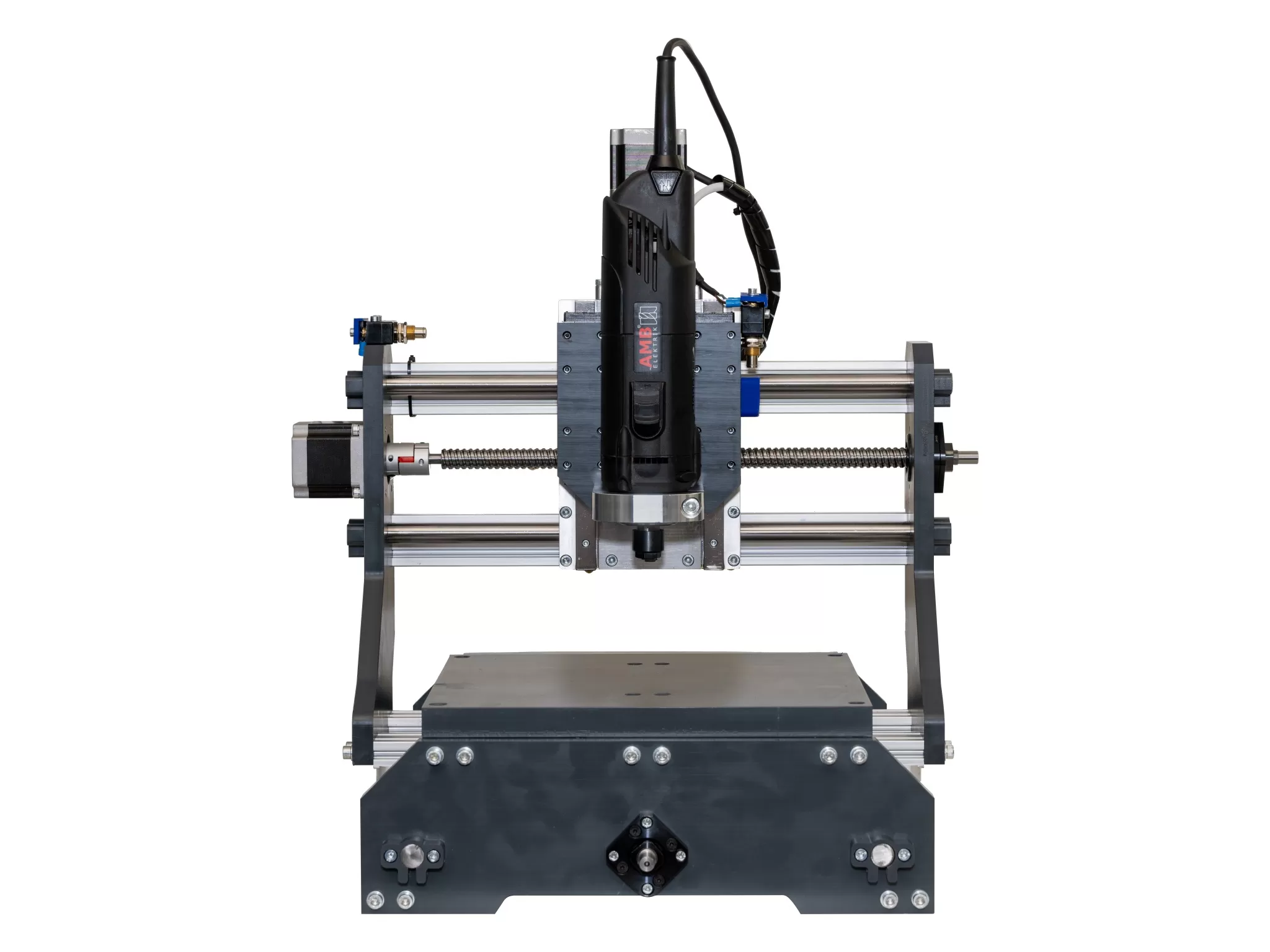

Rabbit Mill Neo

Plug & Play desktop CNC Router that's perfect for designers, makers, engineers, architects and anyone looking for an easy-to-use CNC

This product has been discontinued
View Current Products
Discontinued Rabbit Mill Neo

Product Views

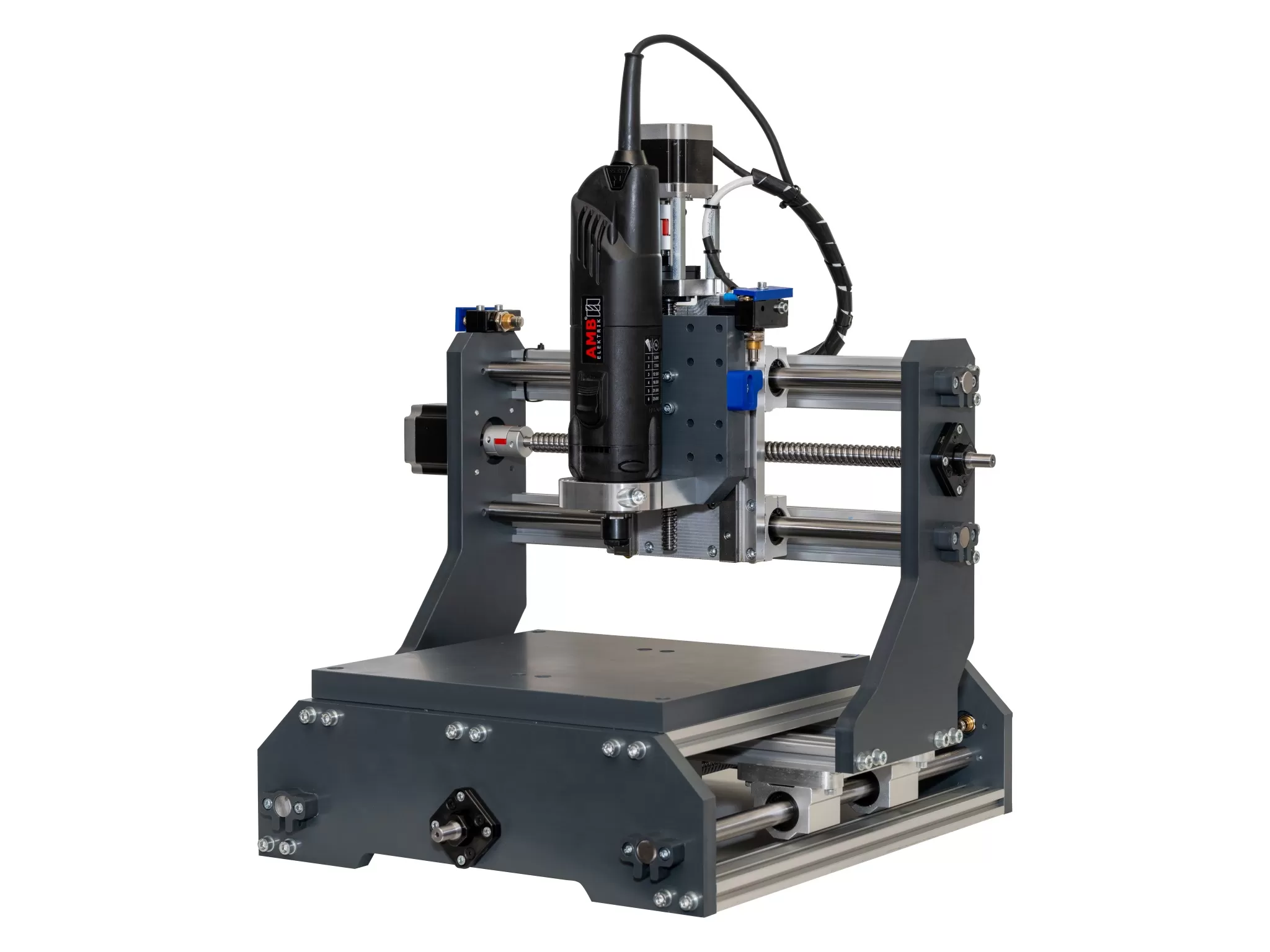

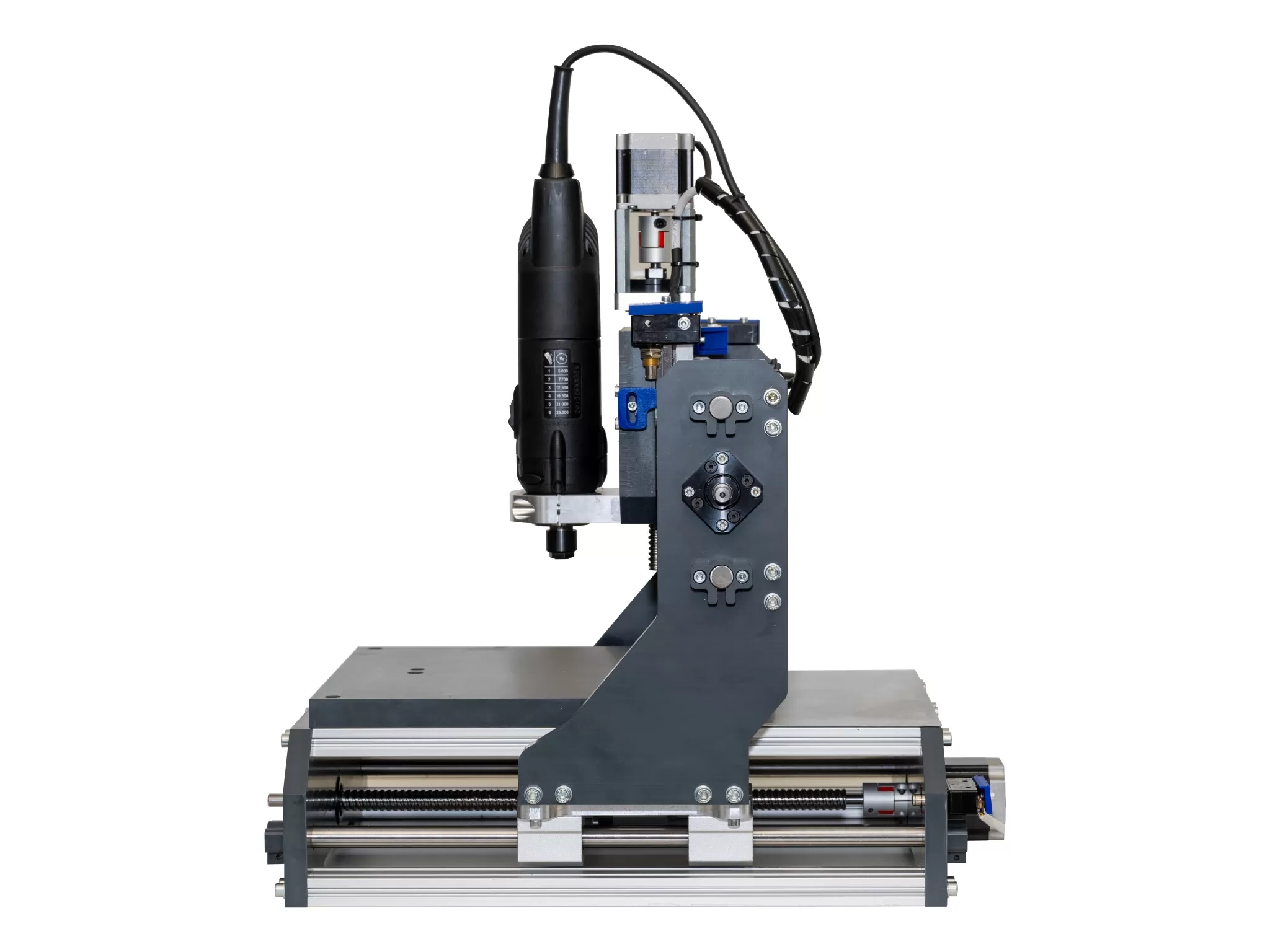

Rabbit Mill Neo is the ideal choice for those who want to create small parts in short periods of time.
With rapid feeds of 7000 mm/min, high performance spindle and semi-automatic tool change, Rabbit Mill Neo can manufacture small parts in minutes where other desktop CNC routers would take hours.

The work area of the Rabbit Mill Neo is 250x250x65mm, the X and Y axes are made of  Φ16mm hardened precision shafts, while the Z axis is assembled with precision square guides.

Rabbit Mill Neo can machine with precision and very high speeds aluminum, brass, copper, PCB, woods, plastics and precious metals such as silver and gold while it is capable of engraving very hard materials such as stainless steel (304, 316 etc.) .

Technical Specifications

Machine Features

Traverse path (X x Y x Z) 250mmx 250mm x 65mm
Bed Size (X x Y) 300mm x 280mm
Rapid Feed (X & Y) 7000mm/min
Rapid Feed (Z) 3000mm/min
Resolution (X, Y & Z) ≤0.01mm

Equipment

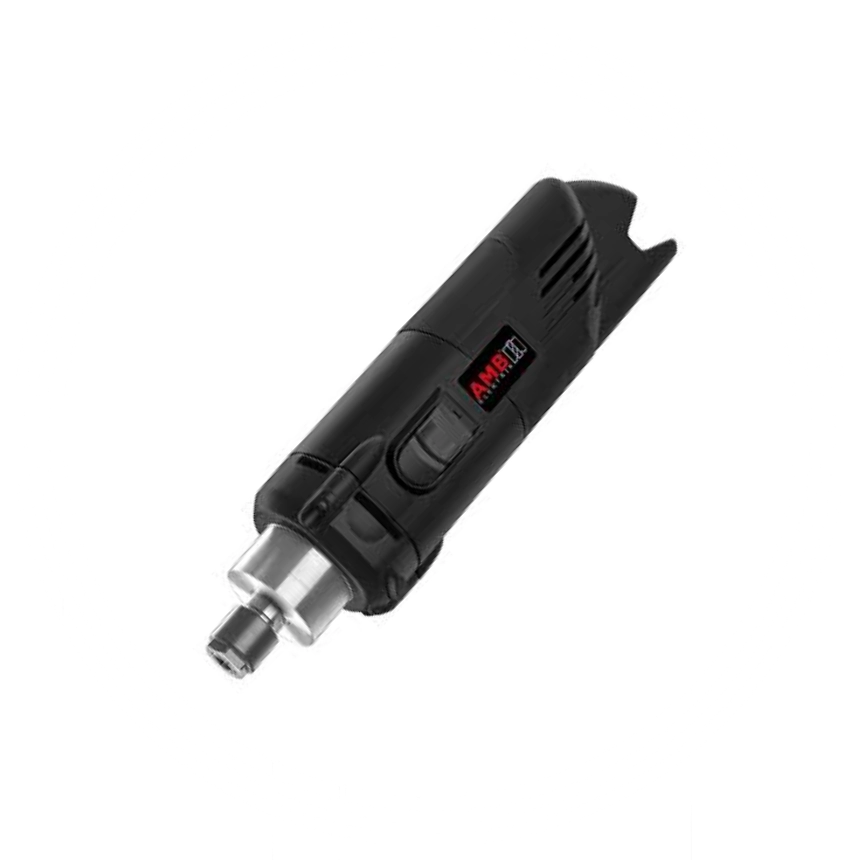

Spindle AMB 1050Watt 25.000RPM

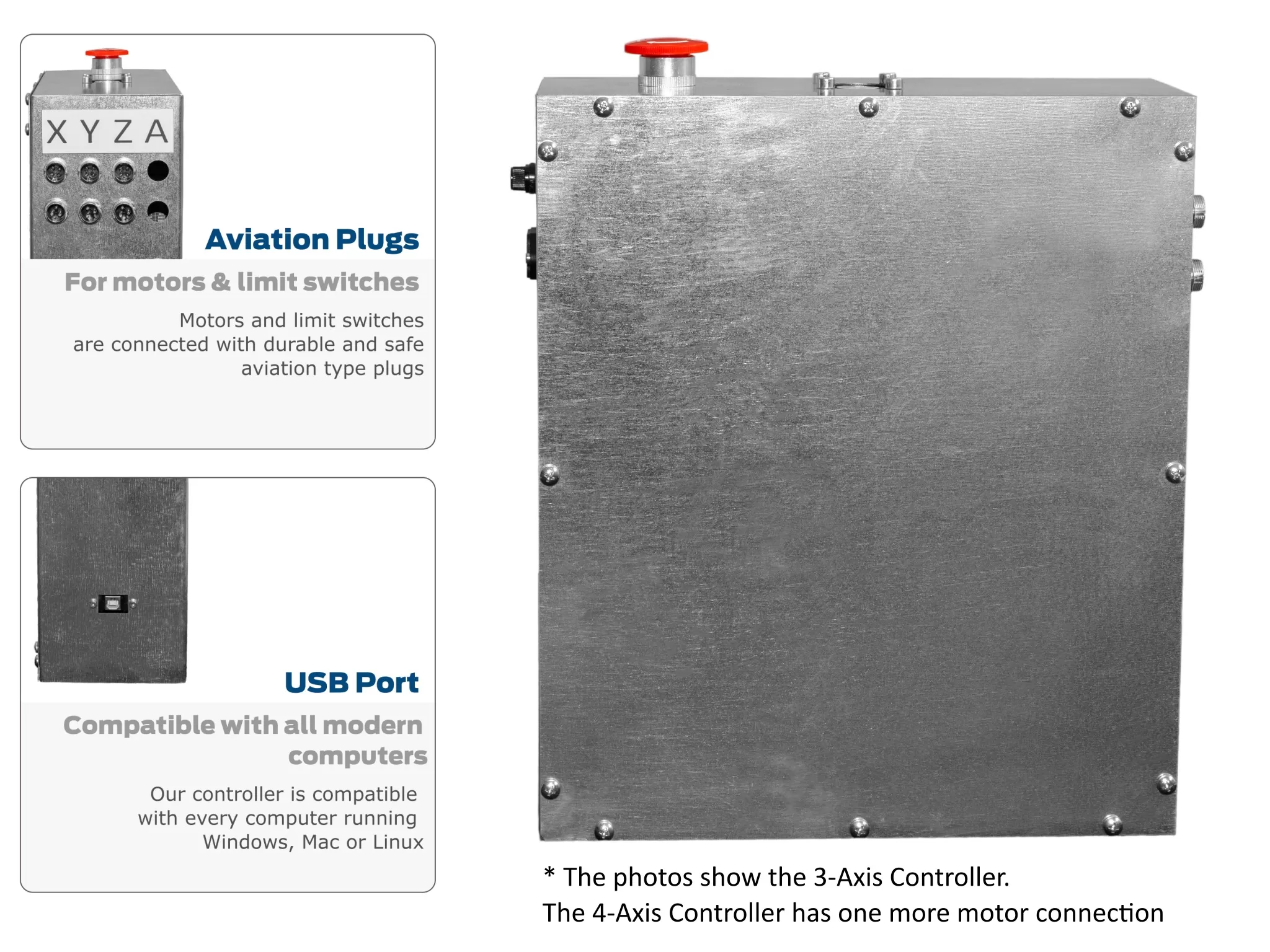

Controller USB 4-Axis GRBL controller compatible with Windows, Mac and Linux

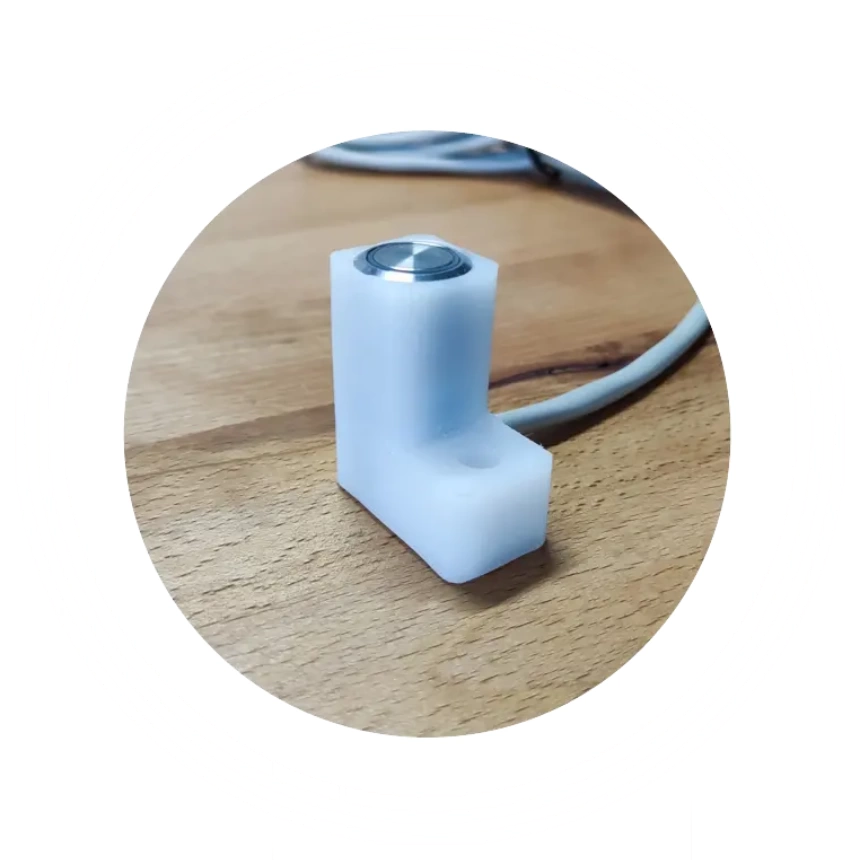

Tool Setter For automatic tool length measurement

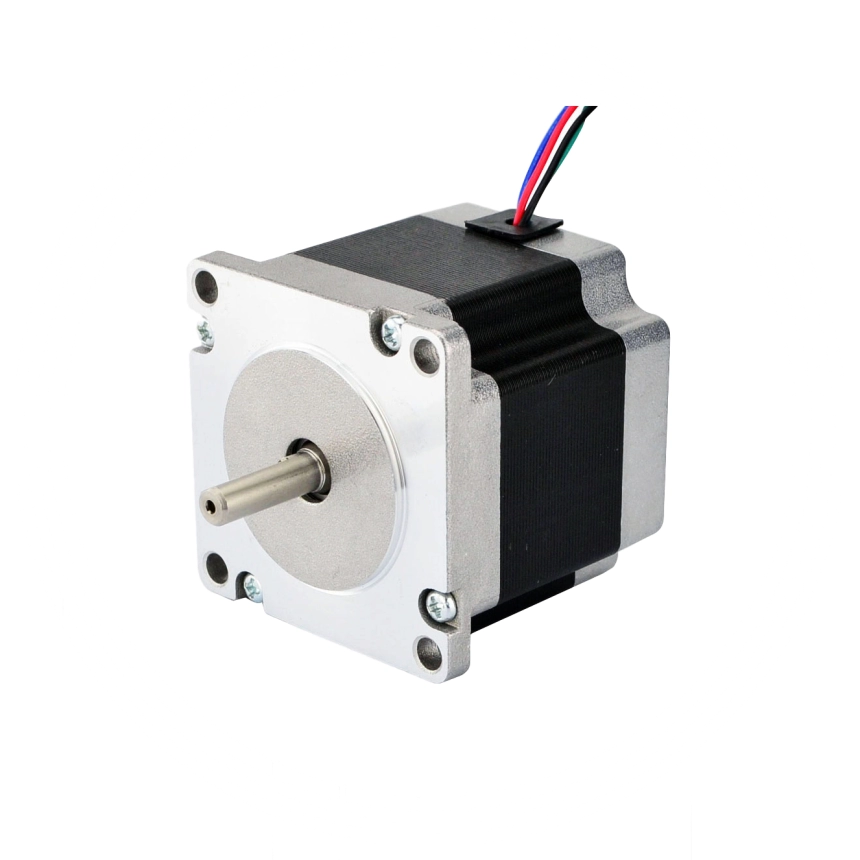

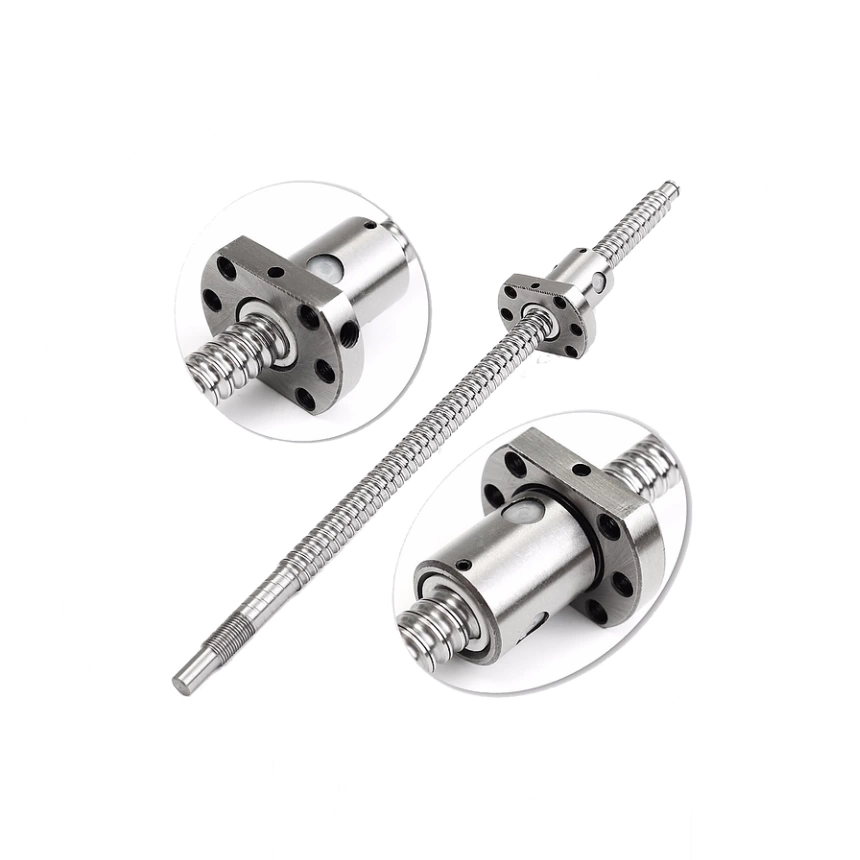

Drive System Nema 23 1.16Nm stepper motors; with direct drive ball screws for each axis

Supply

Voltage Input 230V A/C single phase
Power input 1.3 kW
Ambient temperature 15°C – 30 °C (59°F – 86°F)

Other

Machine Dimentions (W x D x H) 476mm x 501mm x 530mm
Package Size (W x D x H) 570mm x 570mm x 576mm
Net Weight 24kg (53lbs.)
