Rabbit Mill Mega

Rabbit Mill Mega is robust CNC router with a large cutting area designed for small businesses relying on CNC routers for their production

Options

- PHOTOS -

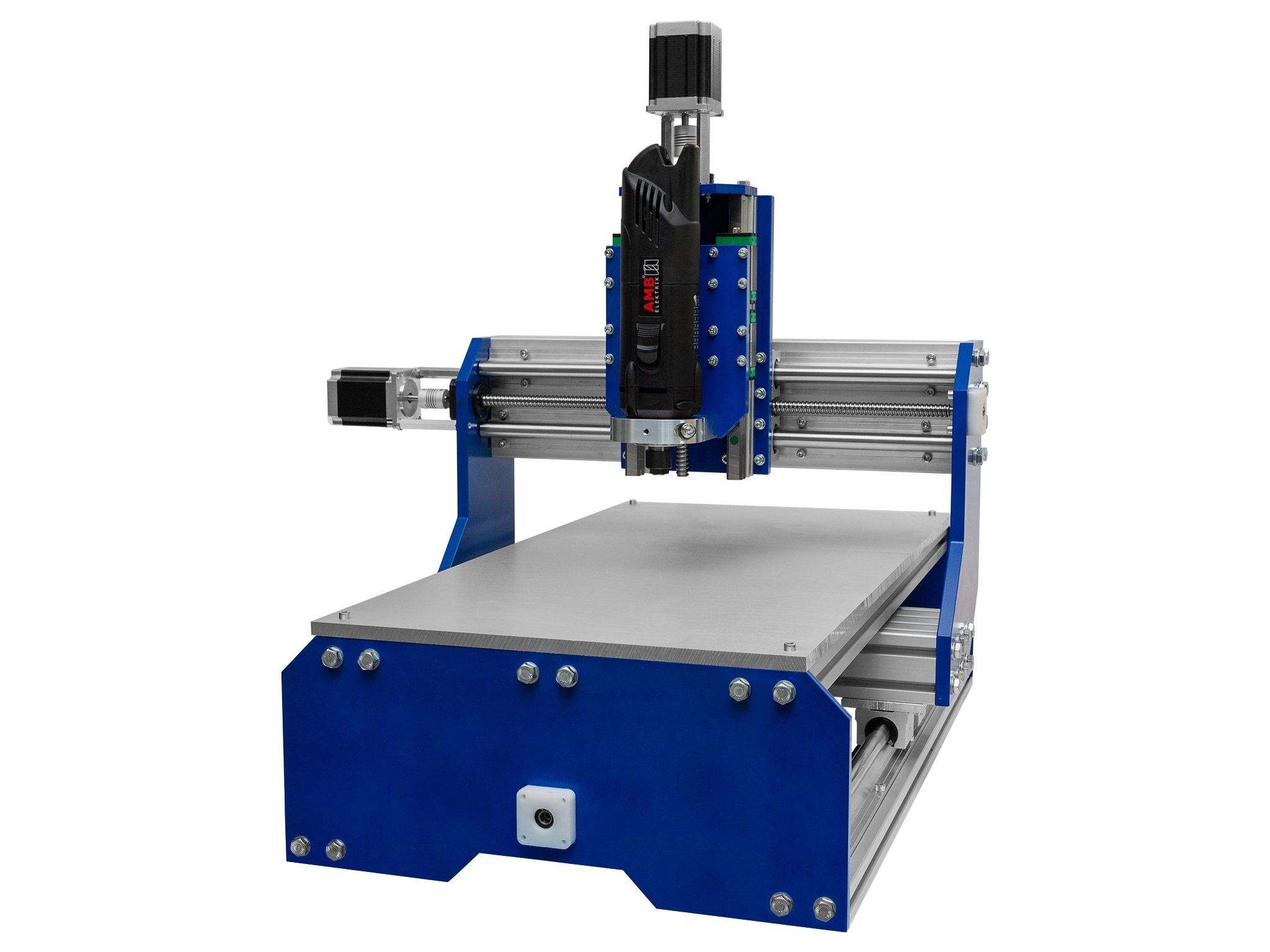

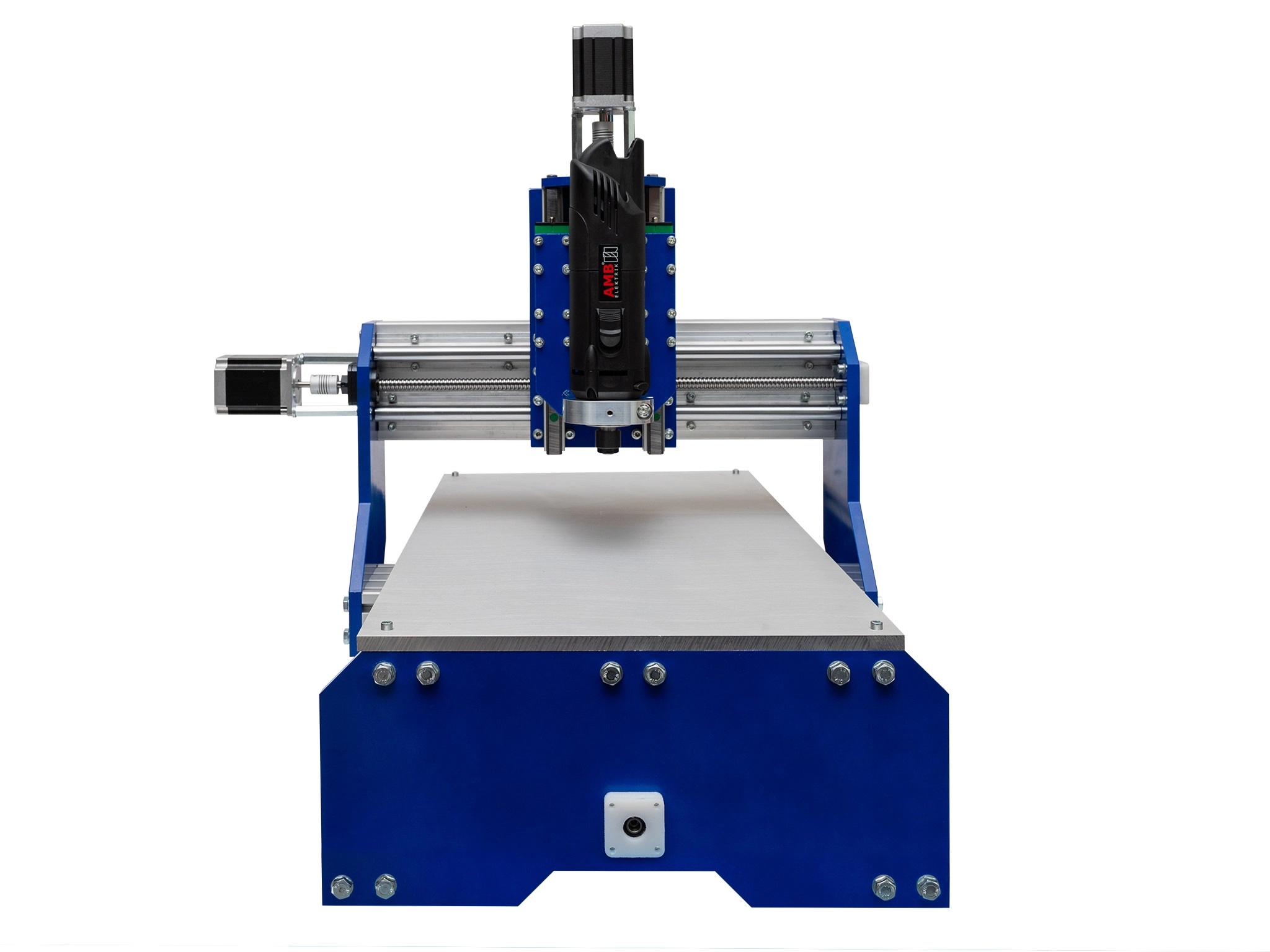

Rabbit Mill Mega view 0

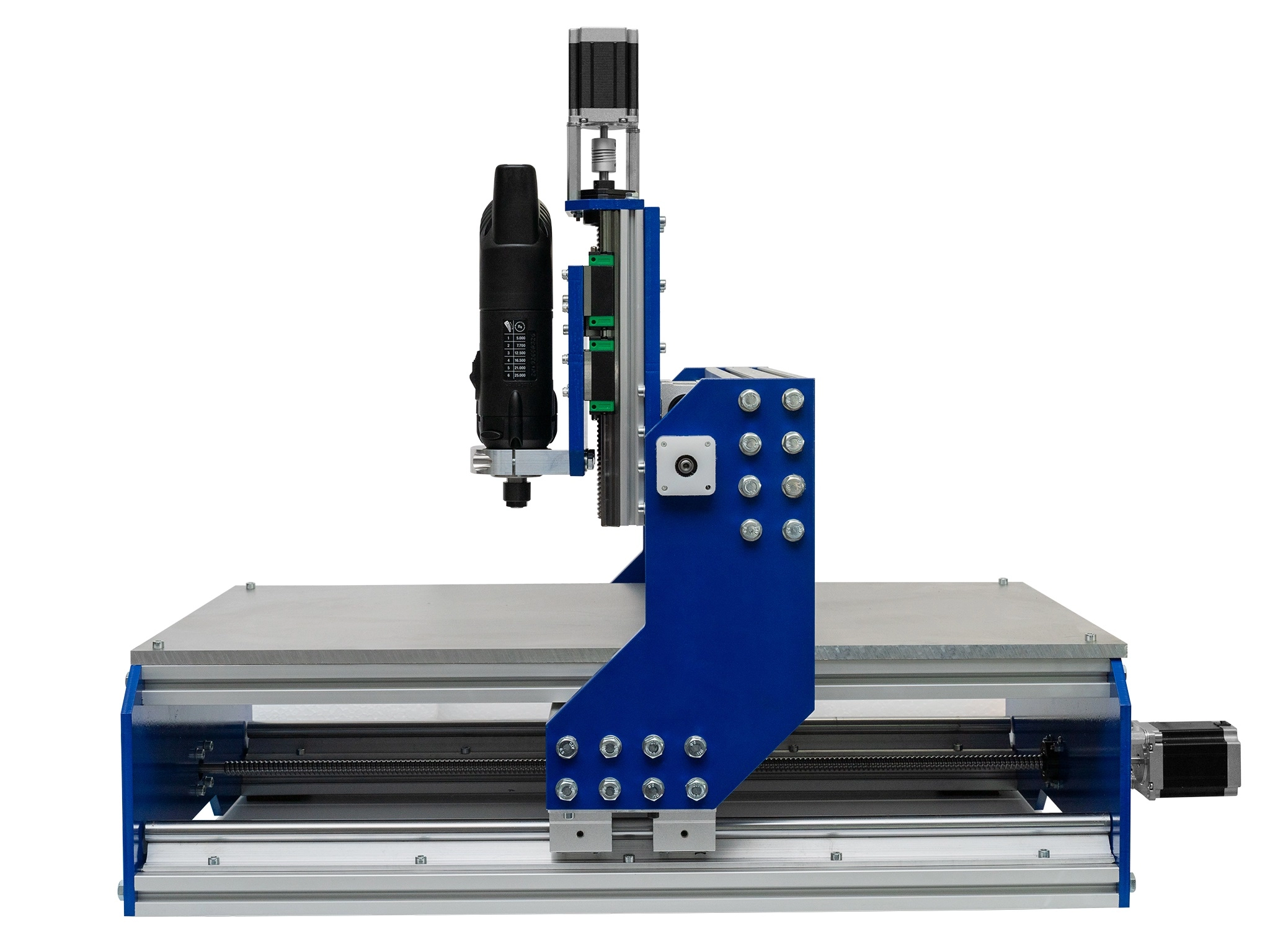

Rabbit Mill Mega view 1
Rabbit Mill Mega view 2
Rabbit Mill Mega view 3

- AT A GLANCE -

High quality and low cost is what makes Rabbit Mill Mega stand out from the competition. Like every CNC machine we build, Rabbit Mill Mega ships fully assembled and ready to use.

Its skeleton is a mixed steel and industrial aluminum construction. All axes are assembled from supported hardened shafts, in order to maximize precision, while the movement is transmitted with zero backlash Ballscrews.

There is a precision waterproof terminal switch on each axes connected to an optocoupler circuit in order to eliminate any external electromagnetic interference.

Machine Features

Traverse path (X x Y x Z)

300mm x 600mm x 60mm to 400mm x 800mm x 100mm

Bed Size (X x Y)

370mm x 763mm or 470mm x 956mm

Rapid Feed (X,Y & Z)

3000mm/min

Resolution (X, Y & Z)

≤0.01mm

Equipment

Spindle

AMB 1050Watt 25.000RPM or AMB 1400Watt 25.000RPM

Tool Setter

For automatic tool length measurement

Drive System

Nema 23 1.90Nm stepper motors with direct drive ball screws for each axis

Controller

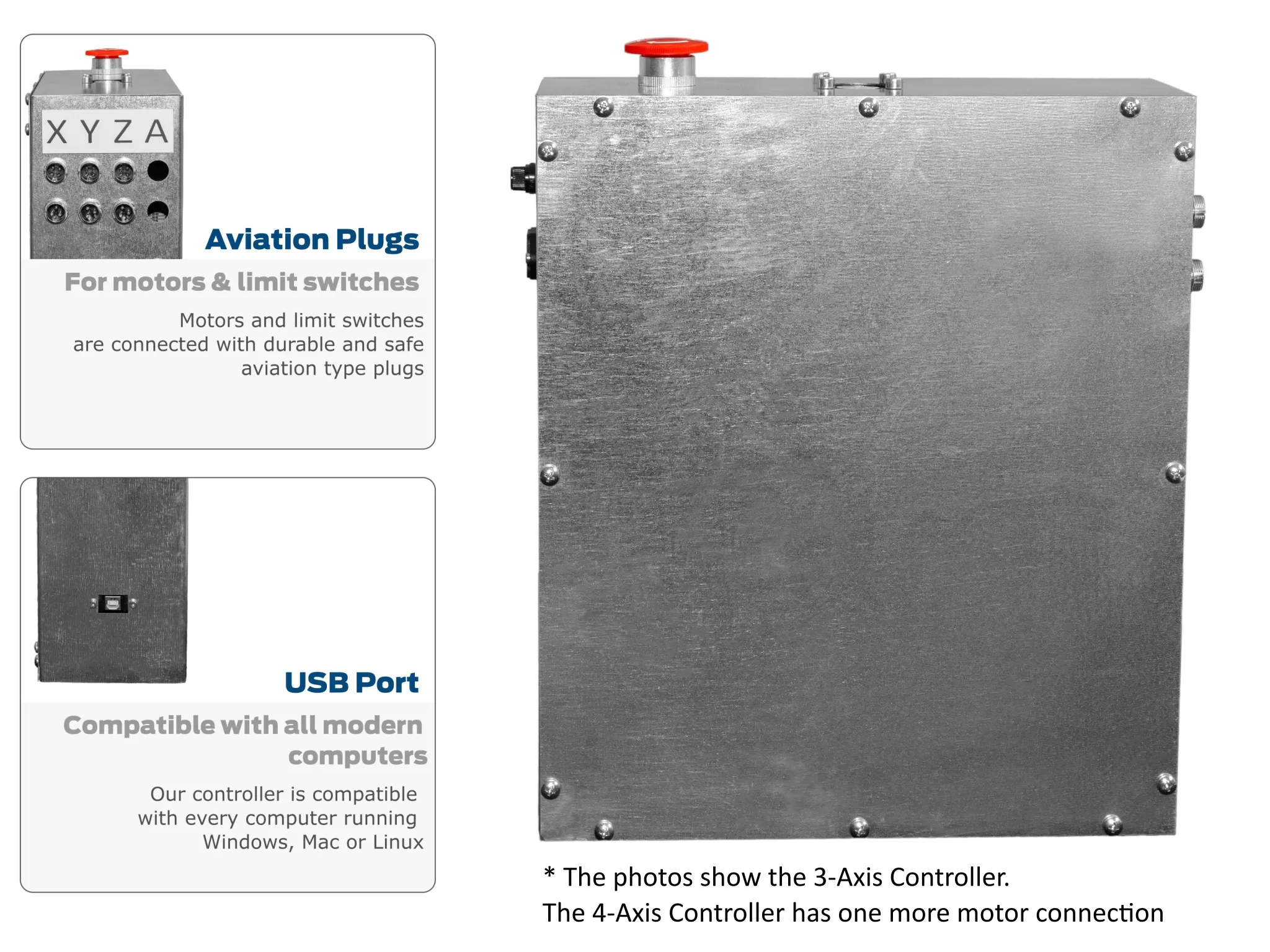

3-Axis GRBL or 4-Axis 32bit GRBL controller with USB connection compatible with Windows, Mac and Linux

Limit Switches

Waterproof limit switches with ≤0.008mm repeatabilit

Supply

Voltage Input

230V A/C single phase

Power Input

2.2Kw

Ambient temperature

15°C – 30 °C (59°F – 86°F)

Άλλα

Machine Dimentions (W x D x H)

887mm x 600mm x 693mm to 1087mm x 700mm x 709mm

Package Size (W x D x H)

942mm x 670mm x 667mm to 1180mm x 767mm x 767mm

Net Weight

60kg ~ 95kg


- KEY FEATURES -

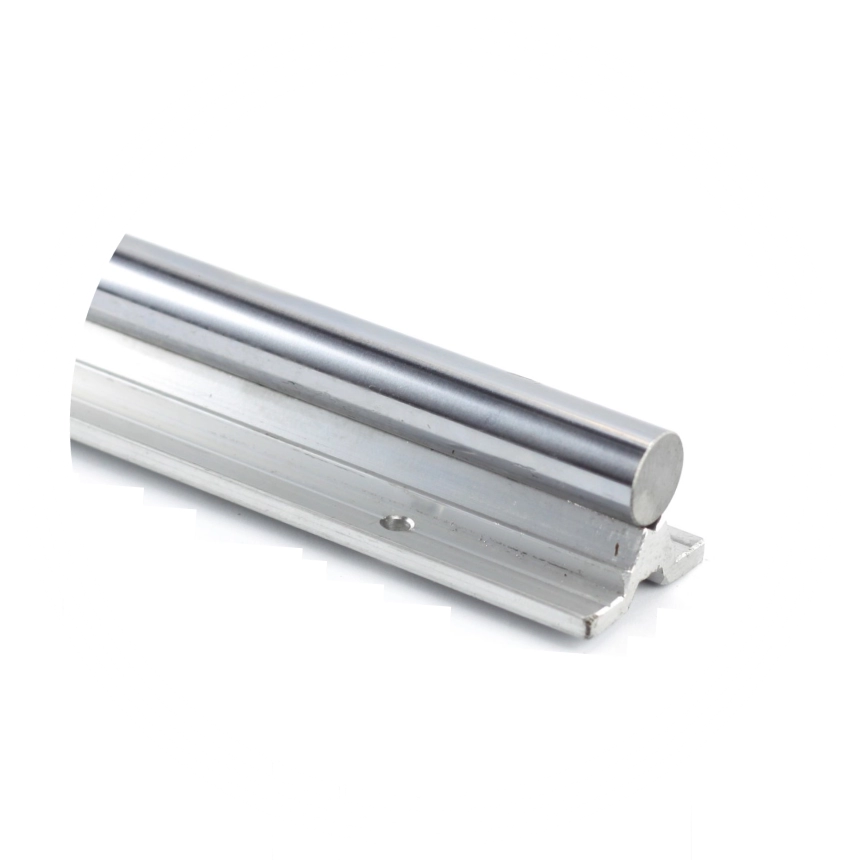

16mm Supported Rails

16mm Supported Rails

Χ & Υ axes are assembled with 16mm supported chrome plated rails (SBR16).

Supported rails ensures rigidity and smooth milling operations even on the hardest aluminum alloys.

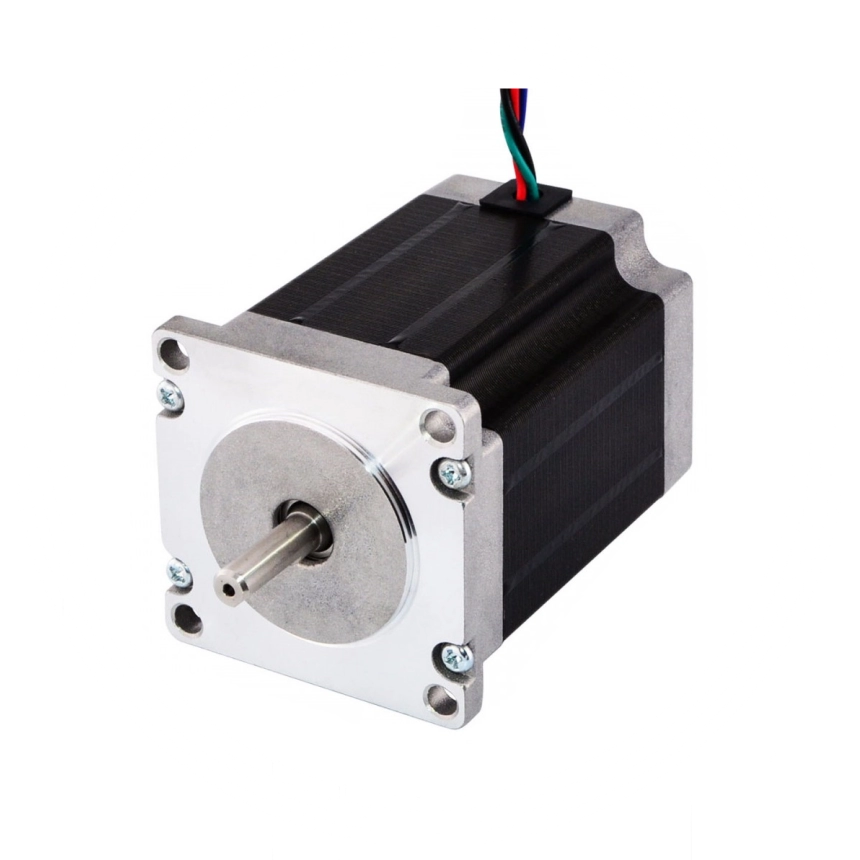

Steppers & Ballscrews

Steppers & Ballscrews

The stepper motors have a torque of 1.90Nm (269.0oz.in) and in conjunction with the ballscrews, are able to provide the required torque to machine wood, plastic and non-ferrous metals such as aluminum.

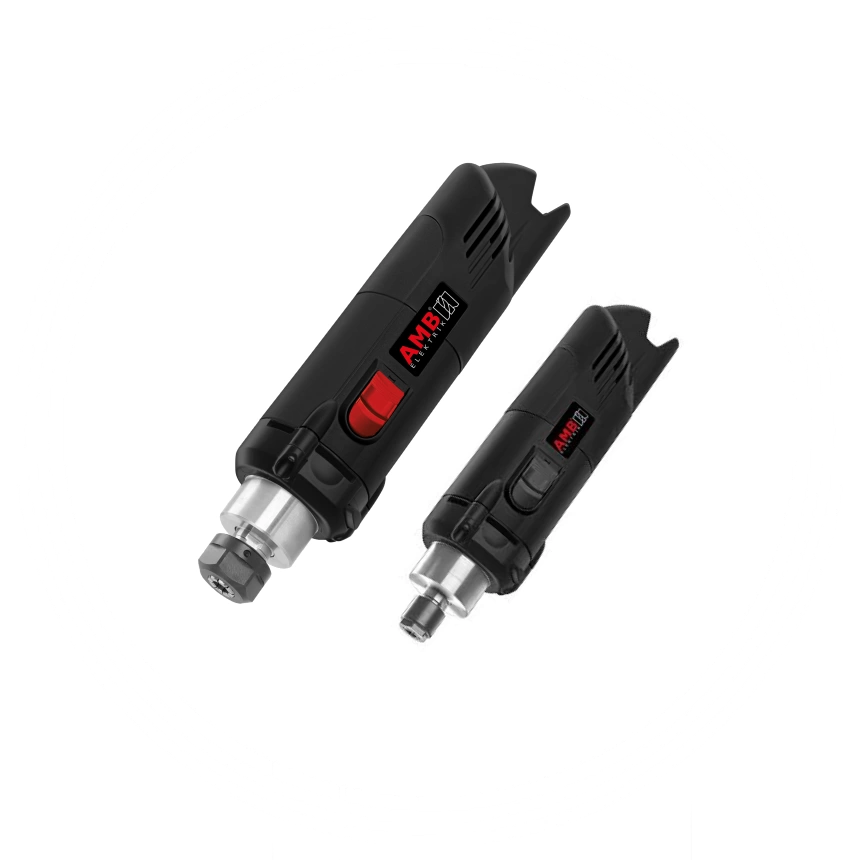

High Speed Spindle

High Speed Spindle

You can choose your Rabbit Mill Mega to come with an AMB 1050Watt or an AMB 1400Watt spindle.

Both spindles are extremely precise and reliable with AMB 1400 being more powerful when it comes to high speed aluminum machining.

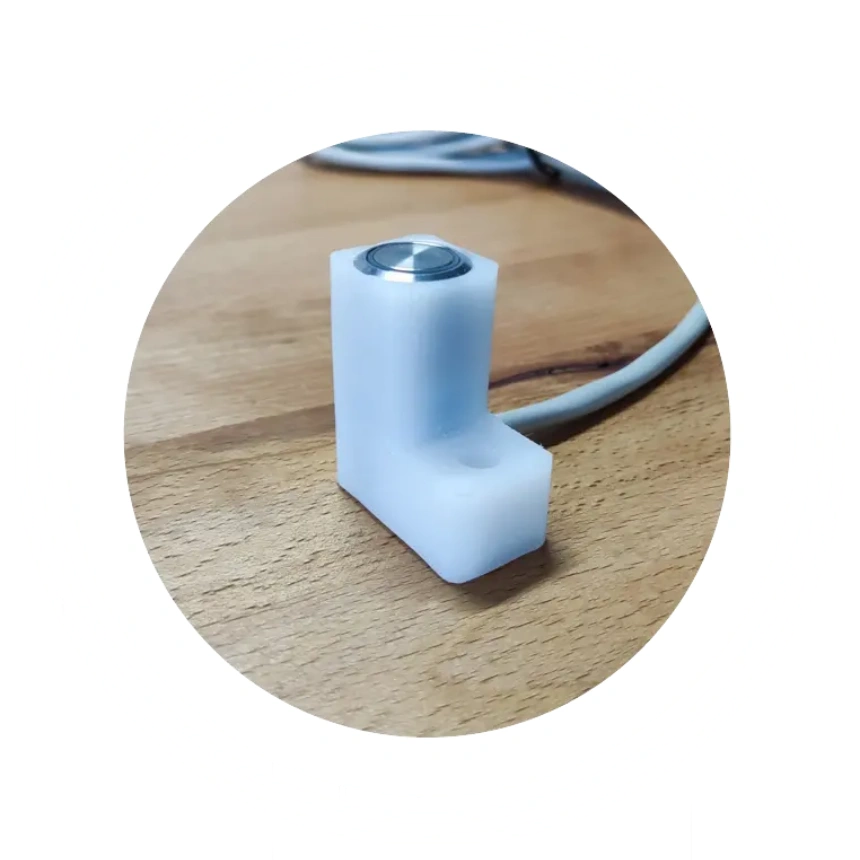

Tool Length Sensor

Tool Length Sensor

Rabbit Mill Mega has built-in Tool Setter D16.

The tool length measurement sensor automatically measures tool height and makes tool changing a simple and trouble free process.

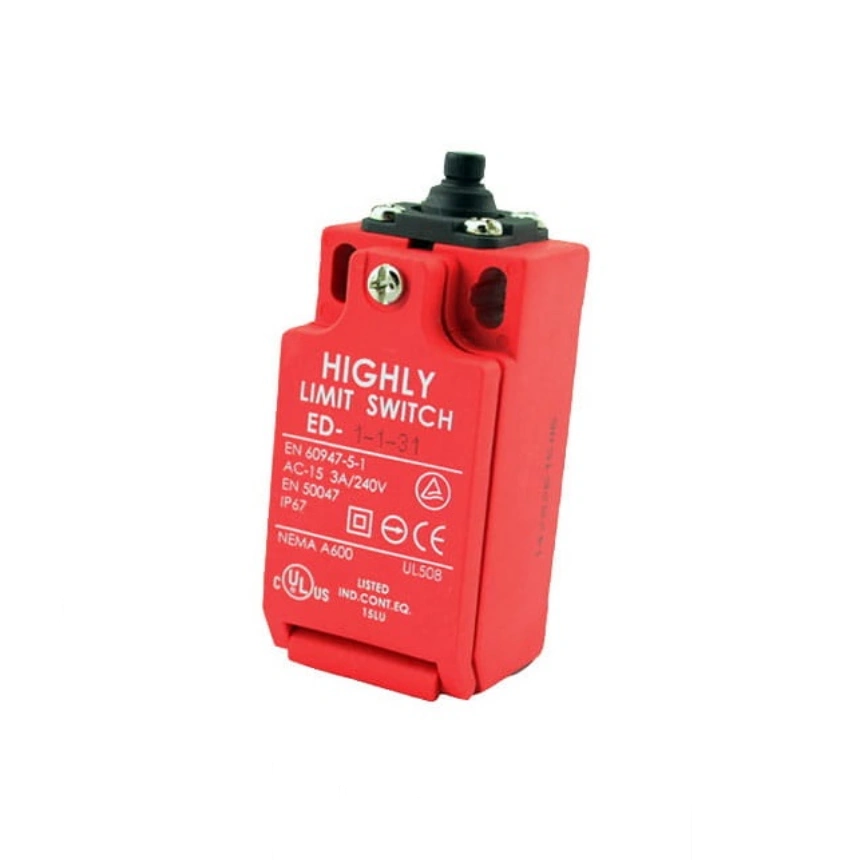

Waterproof Limit Switches

Waterproof Limit Switches

Rabbit Mill Mega is equipped with Precision limit switches with IP67 waterproof rating and ≤0.005mm repeatability.

Free Control Software

Free Control Software

Rabbit Mill Mega ships with a license for Focus PC Based CNC control system.

With Focus you will be able to control your Rabbit Mill Mega using a USB port on your computer.
